LCM Graphic

SUNLIKE manufactures graphic LCD modules in dot matrix by 122x32, 128x32, 128x64, 160x32, 160x80, 192x32, 240x64, 256x64, 128x128, 160x128, 160x160, 208x65, 240x128, 240x160, 320x240, with LCD panel options of STN, FSTN & DFSTN in tranmissive/ transflective mode, while LED backlight is available in color yellow-green, blue, white, etc.

* Click the Model No. for datasheet.

MODEL NO.      DISPLAY             MODEL SIZE        VIEW    DOT    CONTROLLER     PHOTO     PROCESS BACKLIGHT CHARACTER
FORMAT WxHxT (mm) AREA SIZE IC SIZE

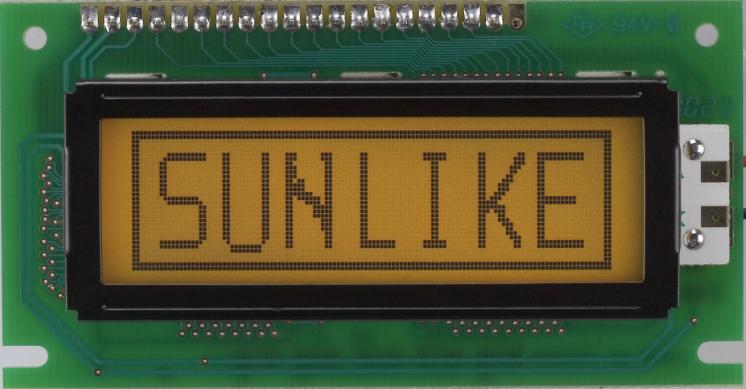

SG12232A 122 x 32 84.0 x 44.0 x 8.8 (12.7) 60.5 x 18.5 .40 x .45 SBN1661 LCD Graphic 12232 COB None,LED

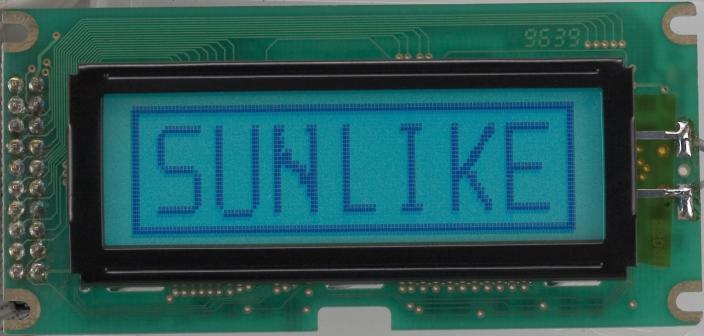

SG12232C 122 x 32 85.0 x 40.0 x 8.8 (12.7) 60.5 x 18.5 .40 x .45 SBN1661 LCD Graphic 12232 COB None,LED

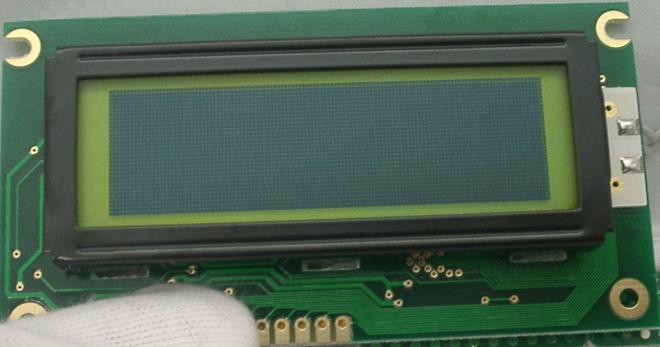

SG12232D 122 x 32 84.0 x 44.0 x 8.8 (12.7) 60.5 x 18.5 .40 x .45 SBN1661 LCD Graphic 12232 COB None,LED

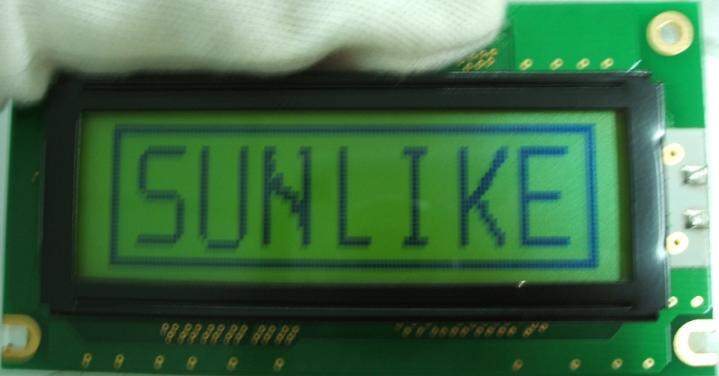

SG12232M 122 x 32 84.0 x 44.0 x 8.8 (12.7) 60.5 x 18.5 .40 x .45 SBN1661 LCD Graphic 12232 COB None,LED

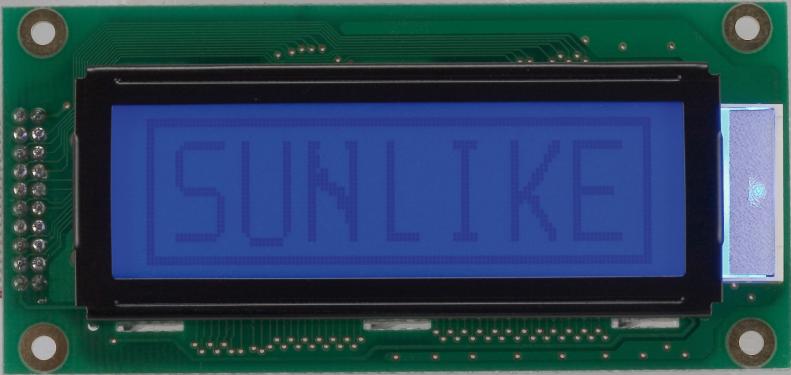

SG12232N 122 x 32 85.0 x 40.0 x 8.8 (12.7) 60.5 x 18.5 .40 x .45 SBN1661 LCD Graphic 12232 COB None,LED

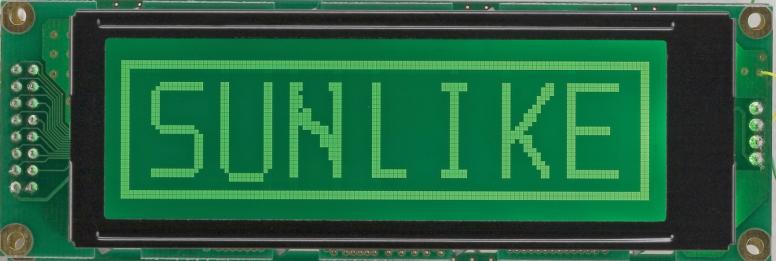

SG12232P 122 x 32 117.0 x 39.0 x 12.7 84.0 x 27.0 .61 x .61 SBN1661 LCD Graphic 12232 COB None,LED Edge

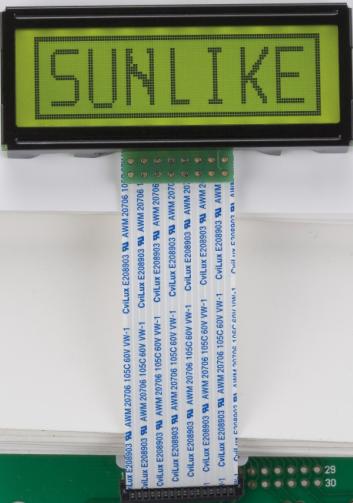

SG12232Q 122 x 32 66.2 x 33.2 x 8.8 60.5 x 18.5 .40 x .45 SBN1661 LCD Graphic 12232 COB None,LED Edge

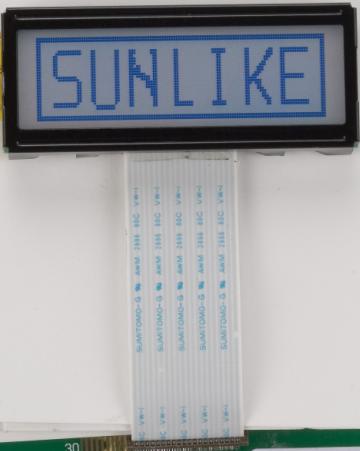

SG12232S 122 x 32 66.2 x 27.2 x 8.8 60.5 x 18.5 .40 x .45 SBN1661 LCD Graphic 12232 COB None,LED Edge

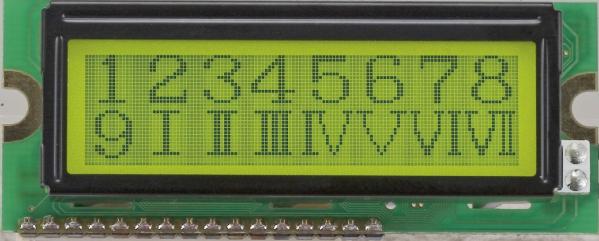

SG12832A 128 x 32(8 x 2) 66.0 x 26.0 x 8.5 (12.0) 51.0 x 14.8 .33 x .34 ST7920 LCD Graphic 12832 COB None,LED 5.88 x 6.04

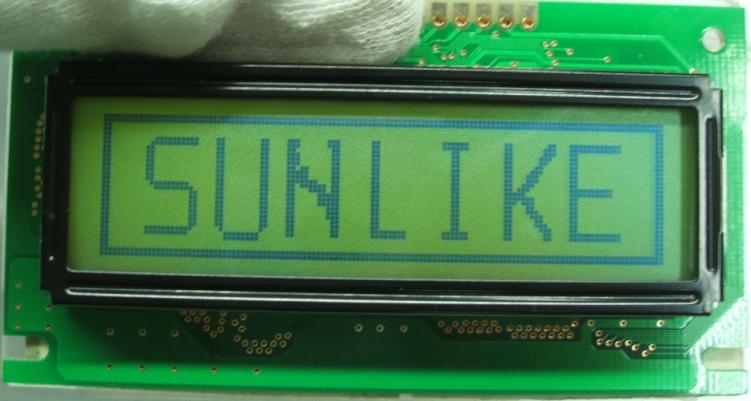

SG12832C 128 x 32 84.0 x 44.0 x 8.8 (12.7) 65.0 x 17.9 .42 x .42 RW1065 LCD Graphic 12832 COB None,LED

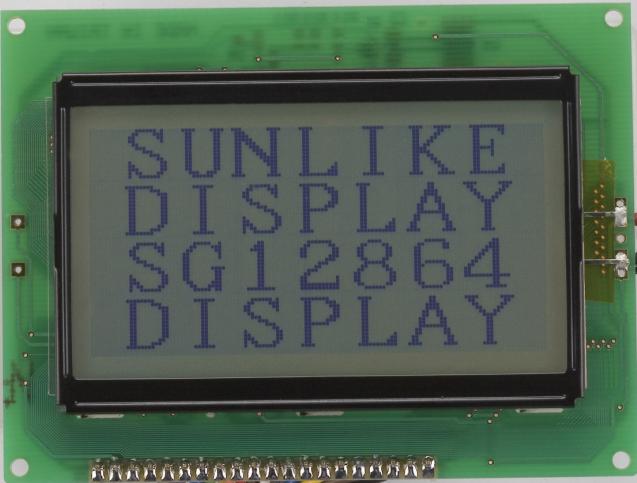

SG12864A 128 x 64 93.0 x 70.0 x 8.8 (12.7) 72.0 x 40.0 .48 x .48 SBN6400G LCD Graphic 12864 COB None,LED

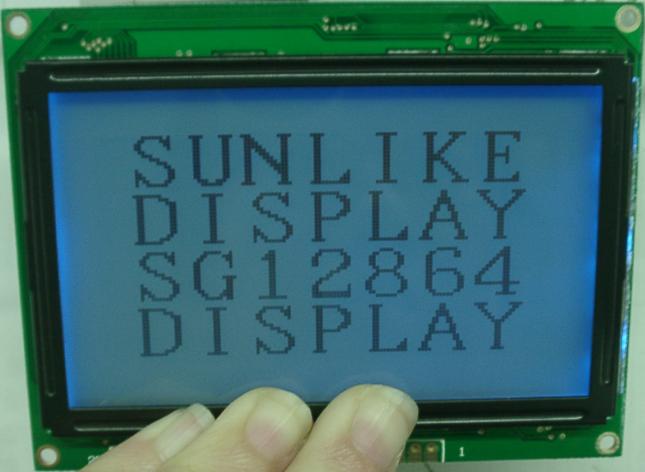

SG12864B 128 x 64 93.0 x 70.0 x 8.7 78.0 x 46.0 .48 x .48 SBN6400G LCD Graphic 12864 COB None,LED

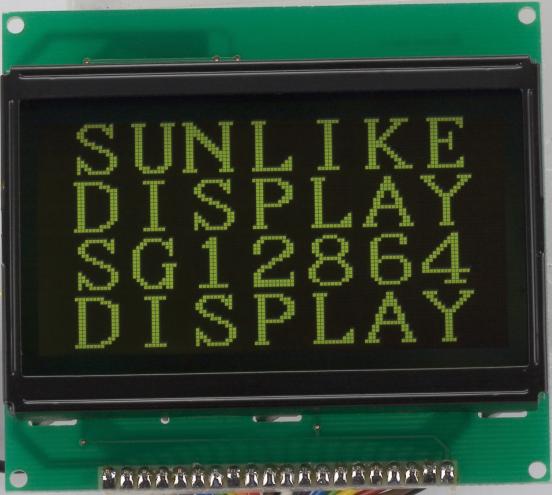

SG12864C 128 x 64 78.0 x 70.0 x 8.8 (12.7) 72.0 x 40.0 .48 x .48 SBN6400G LCD Graphic 12864 COB None,LED

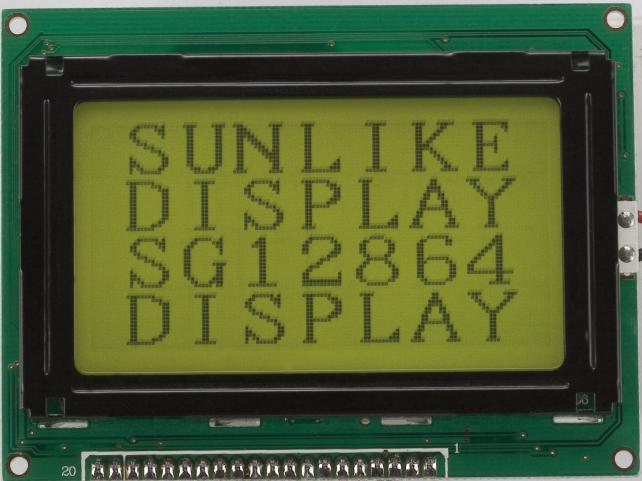

SG12864D 128 x 64 93.0 x 70.0 x 11.8 70.7 x 40.0 .48 x .48 SBN6400G LCD Graphic 12864 COB None,LED

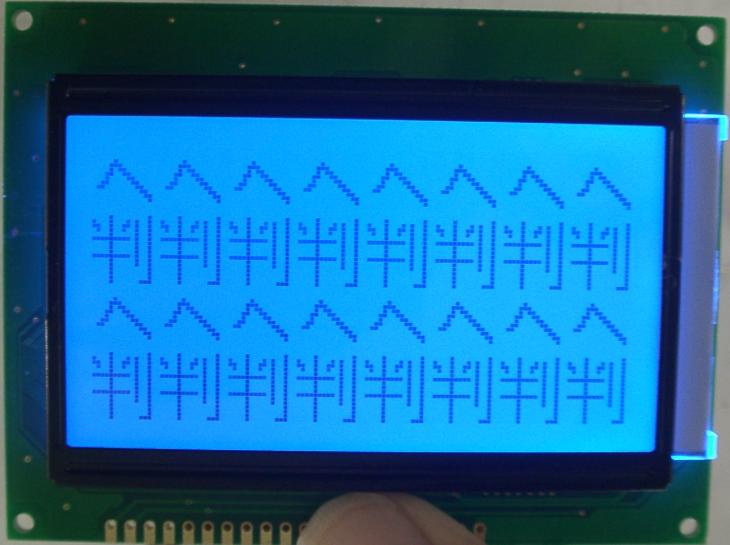

SG12864E 128 x 64 93.0 x 70.0 x 8.8 (12.7) 72.0 x 40.0 .48 x .48 ST7920 LCD Graphic 12864 COB None,LED Edge 8.28 x 8.28

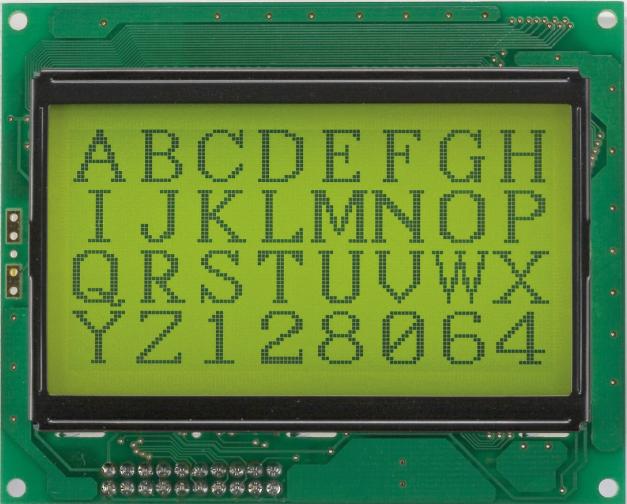

SG12864F 128 x 64 87.0 x 70.0 x 8.8 (12.7) 72.0 x 40.0 .48 x .48 *T6963C LCD Graphic 12864 COB None,LED

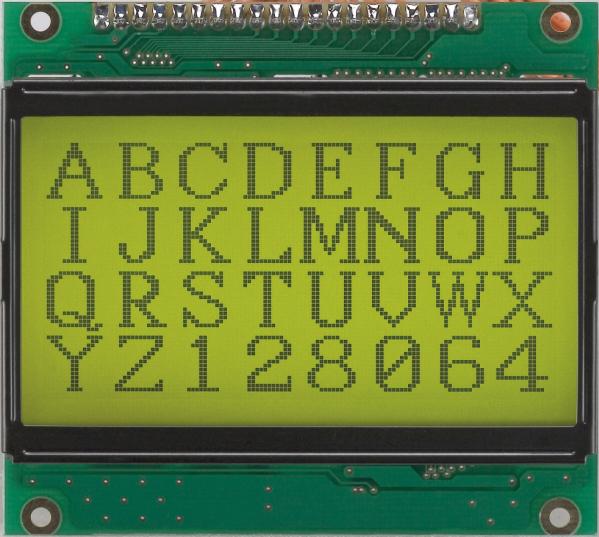

SG12864G 128 x 64 78.0 x 70.0 x 8.8(12.7) 72.0 x 40.0 .48 x .48 *T6963C LCD Graphic 12864 COB None,LED

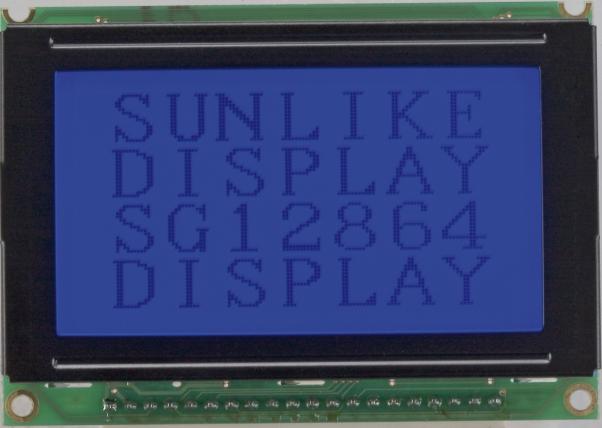

SG12864H 128 x 64 75.0 x 52.7 x 7.9 (9.2) 60.0 x 32.5 .40 x .40 SBN6400G LCD Graphic 12864 COB None,LED Edge

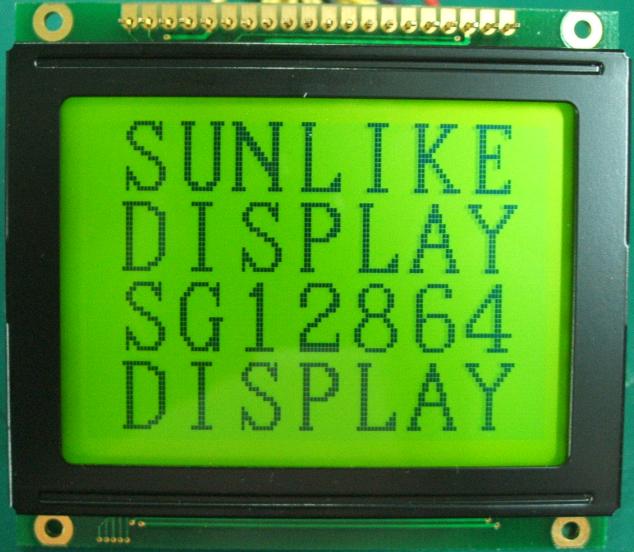

SG12864I 128 x 64 78.0 x 70.0 x 10.5 (13.2) 62.0 x 44.0 .40 x .56 SBN6400G LCD Graphic 12864 COB None,LED Edge

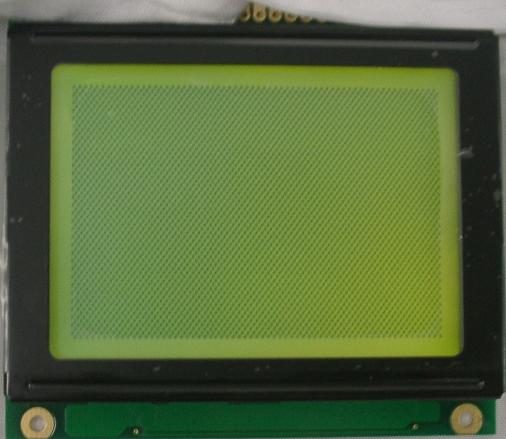

SG12864J 128 x 64 78.0 x 70.0 x 10.5 (13.2) 62.0 x 44.0 .40 x .56 *T6963C LCD Graphic 12864 COB None,LED Edge

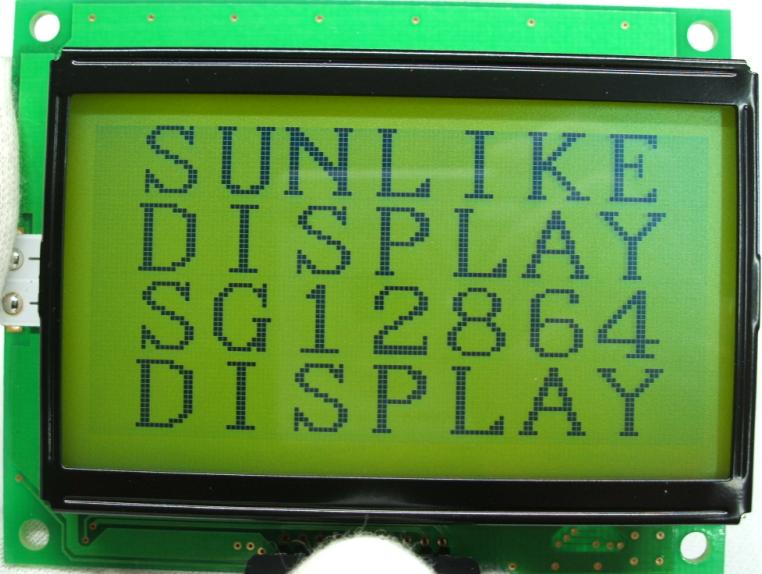

SG12864M 128 x 64 84.4 x 66 x 8.8 (12.7) 72.0 x 40.0 .48 x .48 SBN6400G LCD Graphic 12864 COB None,LED

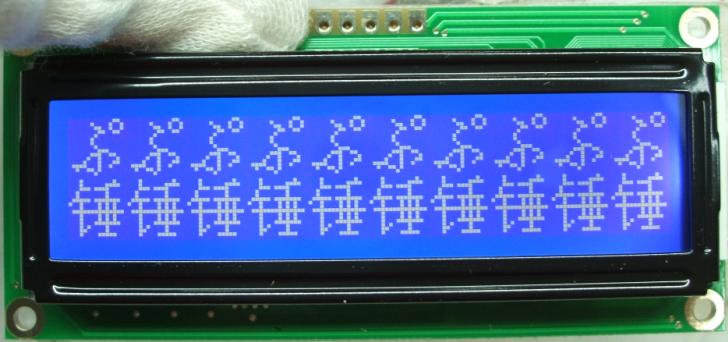

SG16032A 160x32(10 x 2) 80.0 x 36.0 x 8.8 (12.7) 65.0 x 16.0 .35 x .35 ST7920 LCD Graphic 16032 COB None,LED 6.12 x 6.12
SG16032B 160 x 32 122.0 x 44.0 x 13.6 99.0 x 24.0 .55 x .56 SBN0080G   COB LED
SG16032C 160x32(10 x 2) 122.0 x 40.0 x 13.6 99.0 x 24.0 .55 x .56 ST7920   COB LED 9.41 x 9.56

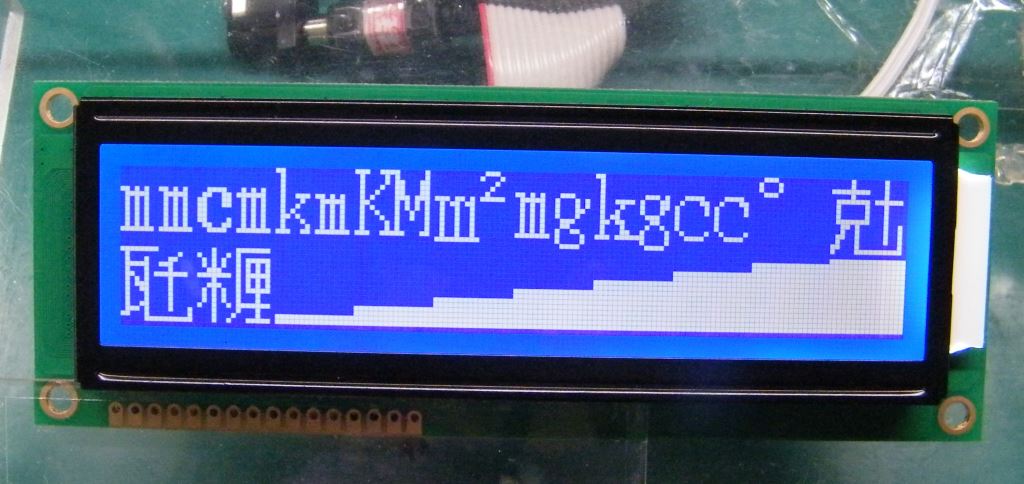

SG16032D 160x32(10 x 2) 122.0 x 44.0 x 13.6 99.0 x 24.0 .55 x .56 ST7920   COB LED 9.41 x 9.56

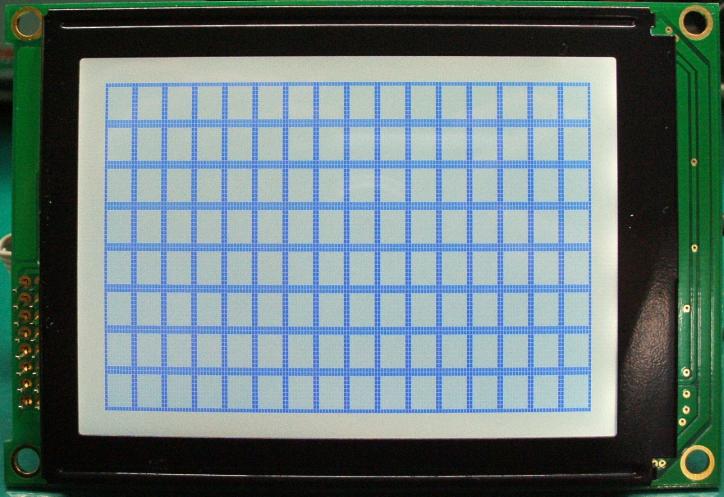

SG16080A 160 x 80 109.0 x 73.0 x 10.2 77.5 x 54.0 .40 x .55 ---------- LCD Graphic 16080 COB None,LED Edge

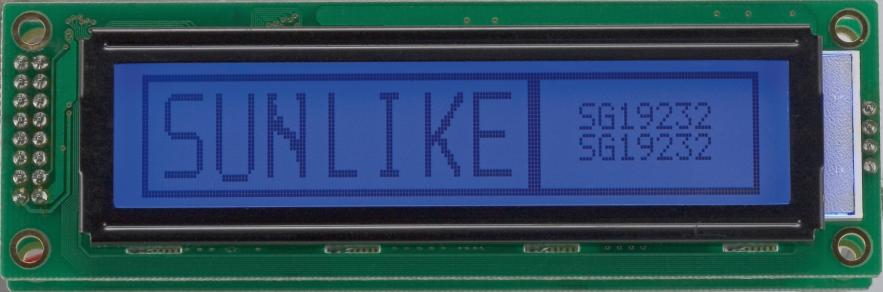

SG19232B 192 x 32 116.0 x 37.0 x 9.4 (10.8) 88.0 x 19.0 .38 x .47 SBN1661 LCD Graphic 19232 COB None,LED Edge

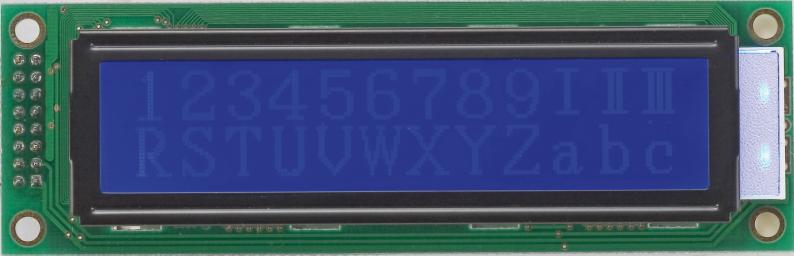

SG19232C 192 x 32(12 x 2) 116.0 x 37.0 x 9.4 (10.8) 88.0 x 19.0 .38 x .47 ST7920 LCD Graphic 19232 COB None,LED Edge 8.12 x 6.68

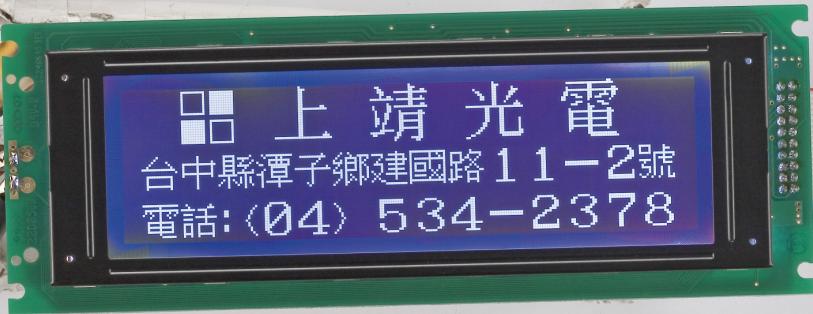

SG24064A 240 x 64 180.0 x 65.0 x 9.7 (13.8) 134.0 x 40.4 .49 x .49 *T6963C LCD Graphic 24064 SMT None,LED,CCFL

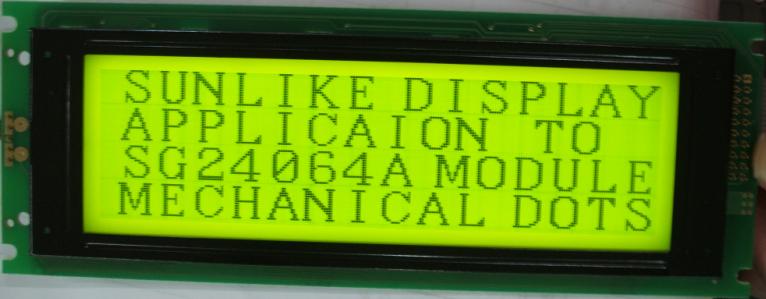

SG24064C 240 x 64 180.0 x 65.0 x 9.7 (13.8) 134.0 x 40.4 .49 x .49 *T6963C LCD Graphic 24064 SMT None,LED,CCFL
SG24064G 240 x 64 180.0 x 65.0 x 9.7 (13.8) 134.0 x 40.4 .49 x .49 *T6963C   SMT None,LED,CCFL

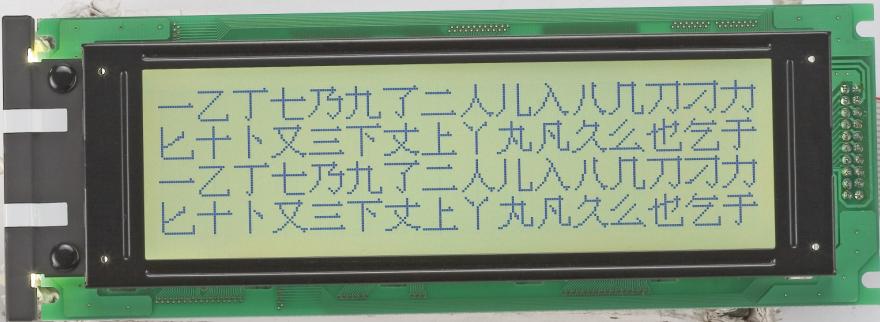

SG25664A 256 x 64(16 x 4) 180.0 x 65.0 x 9.7 (13.8) 134.0 x 40.4 .47 x .47 ST7920 LCD Graphic 25664 SMT None,LED,CCFL 7.97 x 7.97

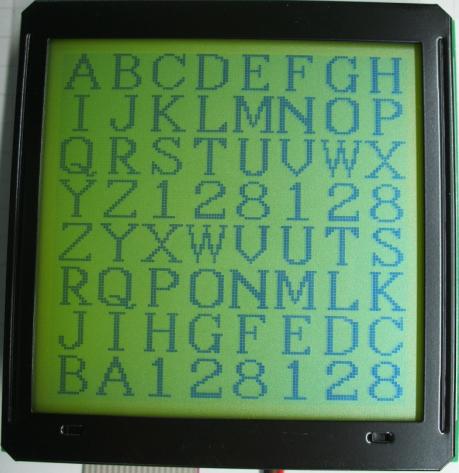

SG128128A 128 x 128 88.0 x 88.0 x 12.0 (16.3) 69.0 x 69.0 .46 x .46 *T6963C LCD Graphic 128128 SMT None,LED

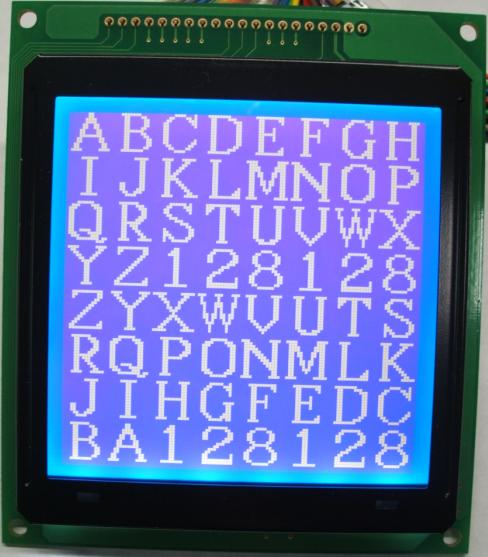

SG128128B 128 x 128 92.0 x 106 x 12.0 (14.5) 69.0 x 69.0 .46 x .46 *T6963C LCD Graphic 128128 SMT None,LED

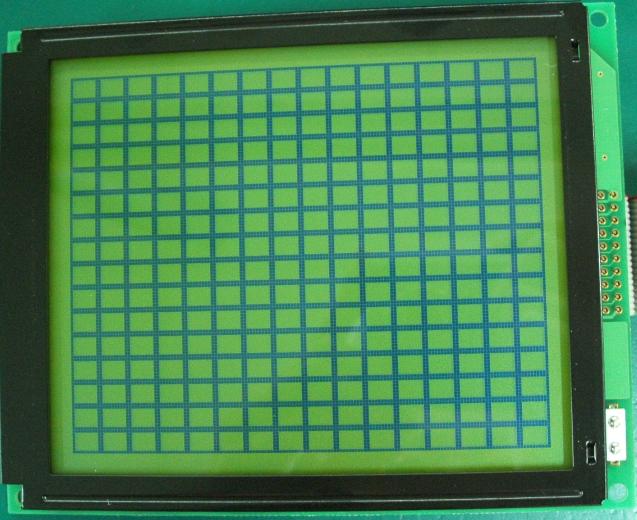

SG160128A 160 x 128 129 x 102 x 16.2 (19.2) 101.0 x 82.0 .54 x .54 *T6963C LCD Graphic 160128 SMT None,LED

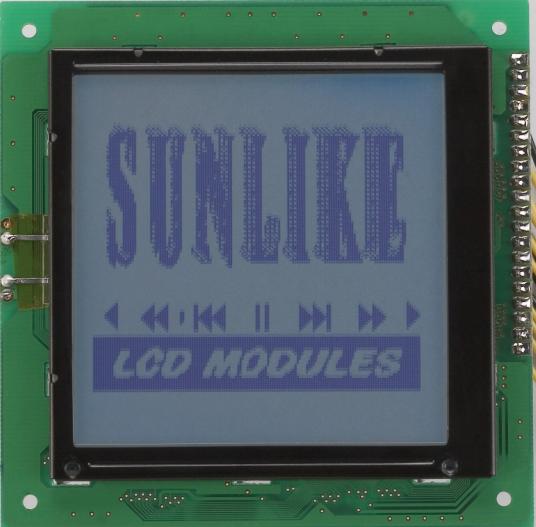

SG160160B 160 x 160 88.8 x 88.8 x 10.0 (14.6) 62.0 x 62.0 .34 x .34 RA8835 LCD Graphic 160160 SMT None,LED

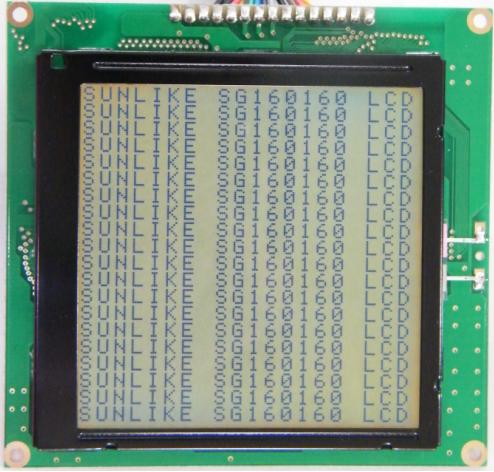

SG160160C 160 x 160 89.2 x 85.0 x 10.0 (14.6) 62.0 x 62.0 .34 x .34 ---------- LCD Graphic 160160 SMT None,LED
SG160160D 160 x 160 85.0 x 90.0 x 10.0 (14.6) 62.0 x 62.0 .34 x .34 LC7981 LCD Graphic 160160 SMT None,LED

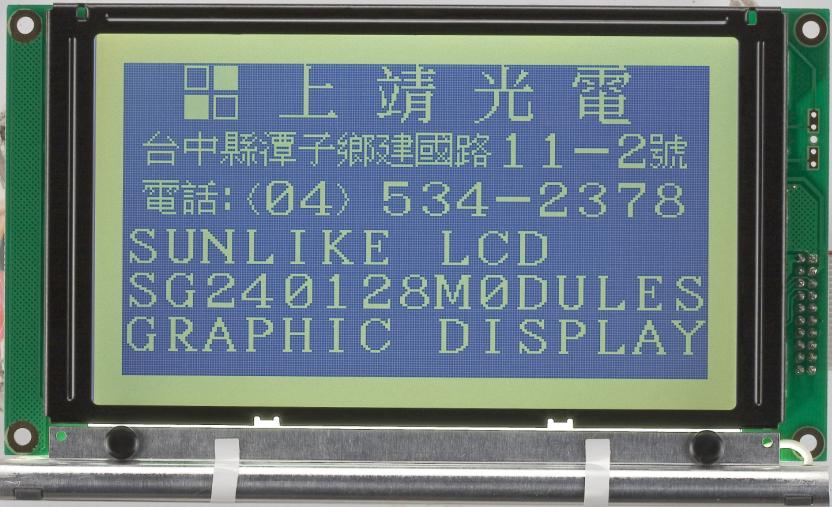

SG240128A 240 x 128 170 x 102 x 14.0 (15.5) 132.0 x 76.0 .47 x .47 *T6963C LCD Graphic 240128 SMT None,LED,CCFL

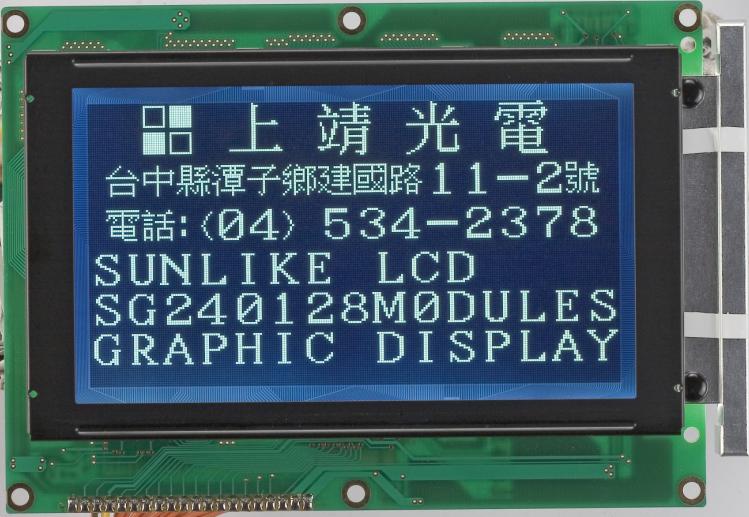

SG240128B 240 x 128 144 x 104 x 10.3 (15.1) 114.0 x 64.0 .40 x .40 *T6963C LCD Graphic 240128 SMT None,LED,CCFL

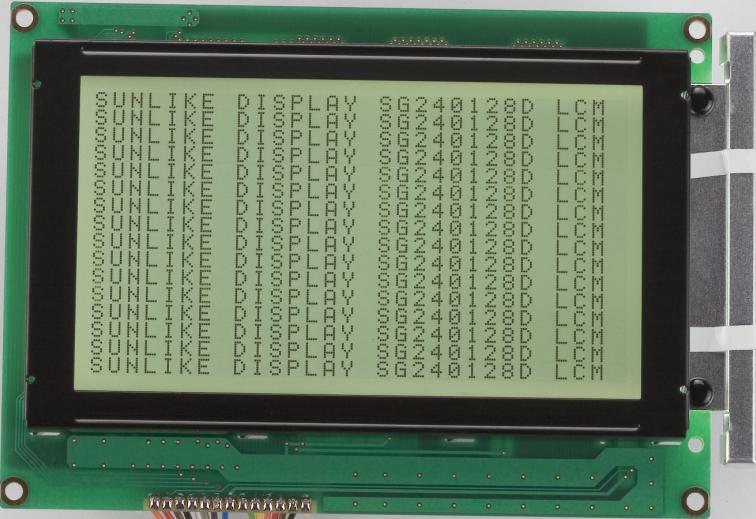

SG240128D 240 x 128 144 x 104 x 10.3 (15.1) 114.0 x 64.0 .40 x .40 ---------- LCD Graphic 240128 SMT None,LED,CCFL
SG240128E 240 x 128 118.0 x 60.0 x 11.6 83.0 x 45.0 .29 x .29 ----------   SMT None,EL
SG240128F 240 x 128 91.8 x 74.0 x 10.0 83.2 x 54.0 .30 x .33 RA8822 LCD Graphic 240128 COB None,LED Edge

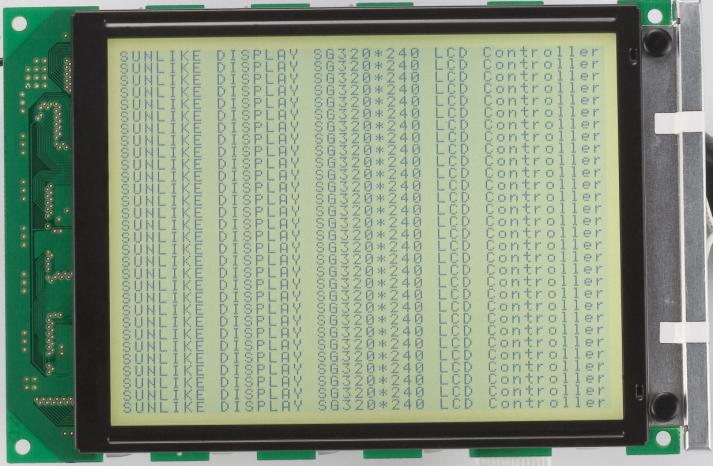

SG320240B 320 x 240 160 (167) x 109.0 x 11.0 121.0 x 92.0 .33 x .33 ---------- LCD Graphic 320240 SMT None,LED Edge,CCFL

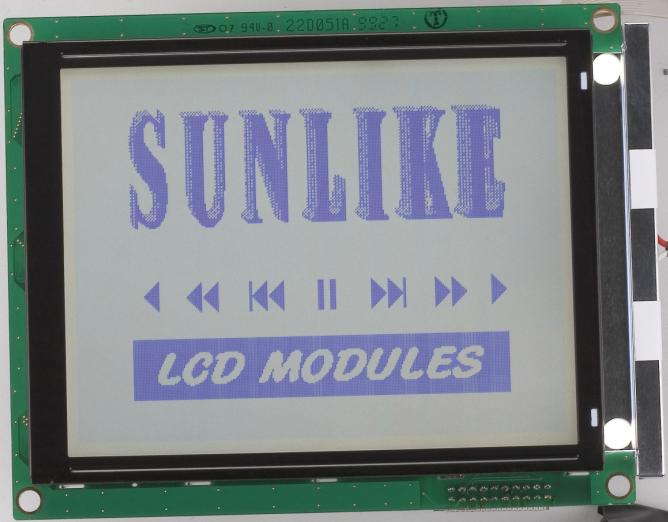

SG320240C 320 x 240 148 (156) x 120.2 x 20.5 121.0 x 92.0 .345 x .345 RA8835 LCD Graphic 320240 COG +SMT None,LED Edge,CCFL

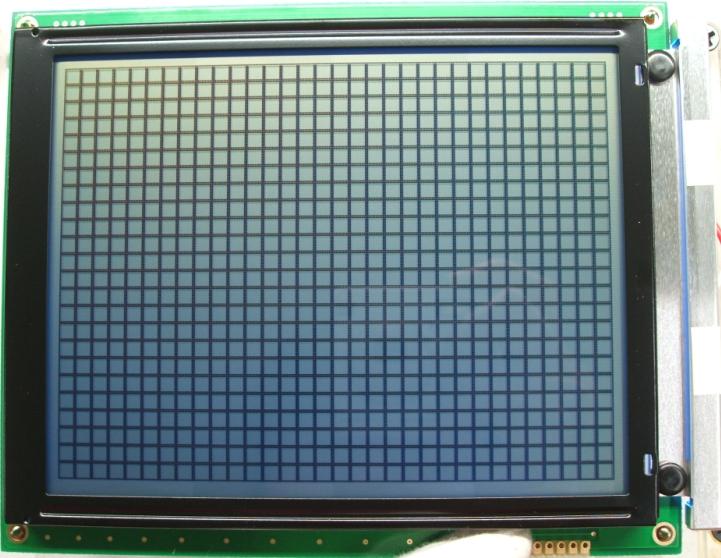

SG320240D 320 x 240 148 (156) x 120.2 x 20.5 120.14x92.14 .33 x .33 ---------- SMT None,LED Edge,CCFL
SG320240E 320 x 240 109.0 x 70.25 x 7.9 78.8 x 59.6 .23 x .23 ---------- LCD Graphic 320240 TAB+SMT None,LED Edge,EL

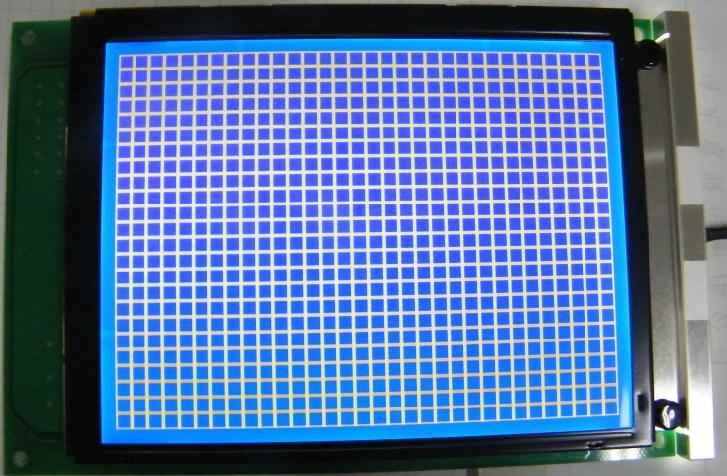

SG320240F 320 x 240 160.0 x 109.0 x 12.9 121.0 x 92.0 .345 x .345 ---------- LCD Graphic 320240 COG +SMT None,LED Edge,CCFL

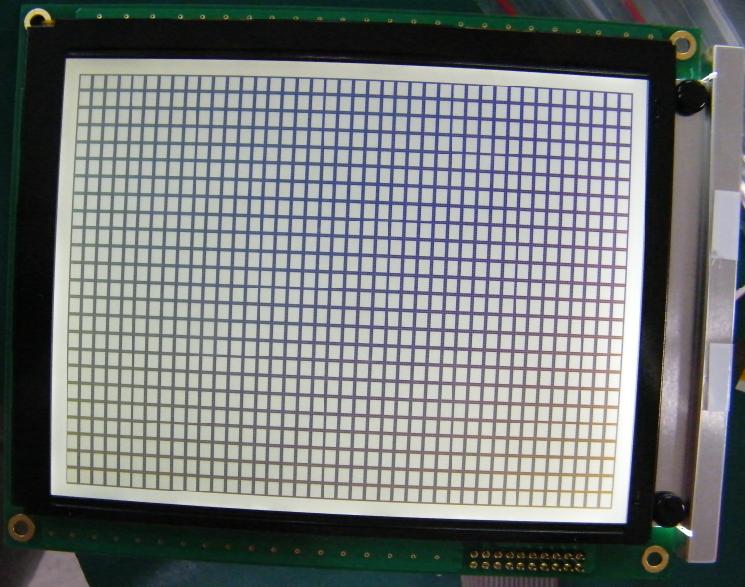

SG320240H 320 x 240 156.0 x 120.2 x 13.5 121.0 x 92.0 .345 x .345 RA8806 LCD Graphic 320240 COG +SMT None,LED Edge,CCFL
SH12864A 128 x 64 80.0 x 54.0 x 9.7 70.7 x 38.8 .48 x .48 ST7565 LCD Graphic 12864 COG COG None,LED Edge
SH12864B 128 x 64 72.0 x 46.0 x 4.8 66.0 x 32.7 .45 x .45 NT7532   COG None,LED Edge
SH12864C 128 x 64 74.8 x 54.5 x 8.0 59.0 x 32.0 .40x .40 ST7565   COG None,LED Edge
SH12864D 128 x 64 40.3 x 35.0 x 4.5 33.8 x 22.2 .225x .285 NT7532 LCD Graphic 12864 COG COG None,LED Edge
SH160160A 160 x 160 69.0 x 69.5 x 6.0 63.4 x 63.3 .335 x .335 ---------- LCD Graphic 160160 TAB EL
SH20865A 208 x 65 67.0 x 30.0 x 2.0 60.425 x 20.385 .265 x .265 IST3017   COG None
SH240160B 240 x 160 80.0 x 65.0 x 6.5 61.6 x 42.5 .23 x .23 RA8835   TAB +SMT EL,LED

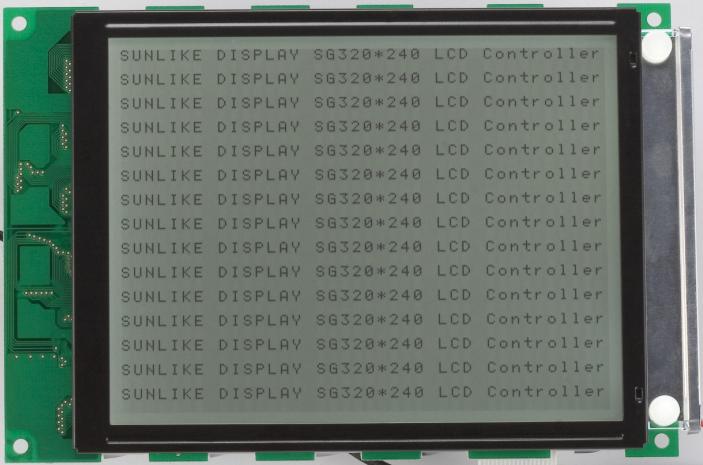

SH320240A 320 x 240 160 (167.1) x 109 x 11.0 121.0 x 92.0 .33 x .33 RA8835 LCD Graphic 320240 SMT None,LED Edge,CCFL

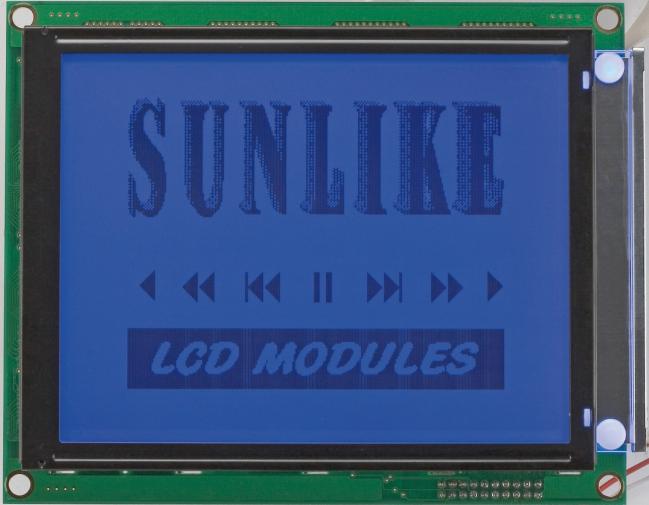

SH320240C 320 x 240 148 (156) x 120.2 x 20.5 120.14x92.14 .33 x .33 RA8835 LCD Graphic 320240 SMT None,LED Edge,CCFL

* Due to EOL of T6963C, it will be replaced by RA6963 after we run out of stock.
