OLED Display

* Click the Model No. for datasheets.

MODEL NO.  SIZE  DESCRIPTION DISPLAY    MODEL SIZE      WINDOW       ACTIVE         PHOTO     COLOR
FORMAT WxHxT (mm) SIZE AREA

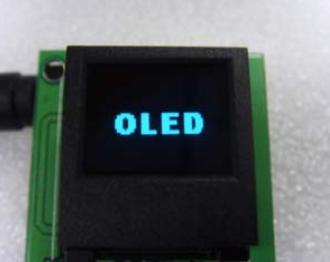

SCY-3011 0.66 inch Display module+ plastic window 64 x 48 21.2 x 21.2 x 10.1 15.94 x 11.94 13.42 x 10.06   Blue

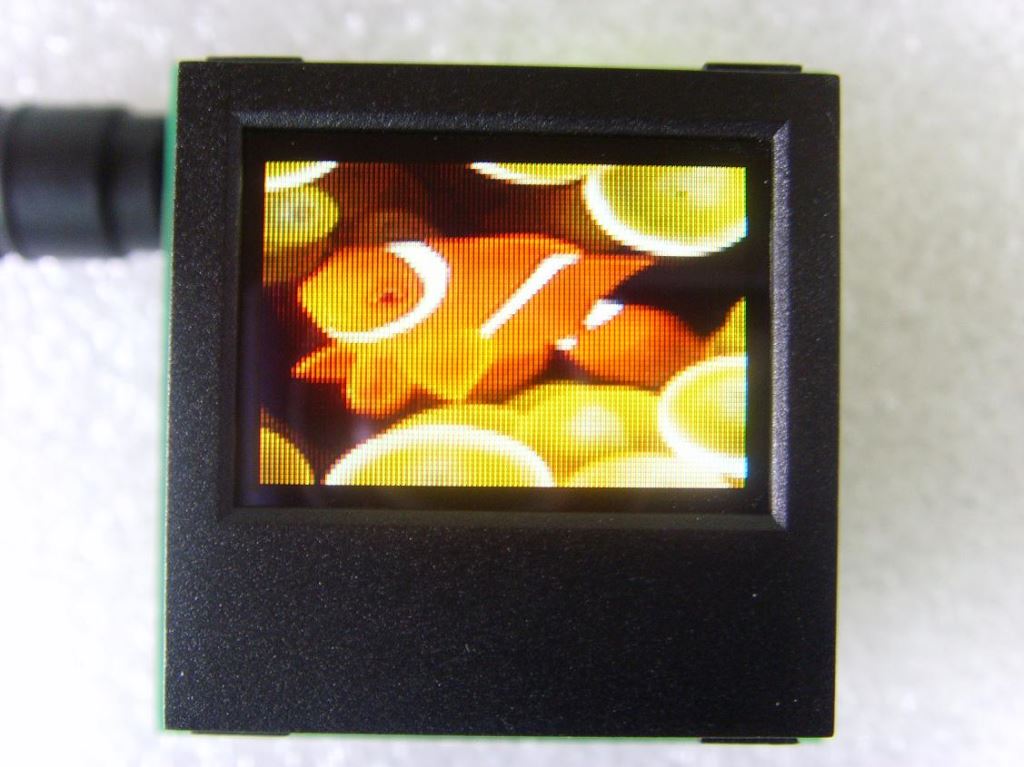

SCY-3021 0.95 inch Display module+ plastic window 96 x 64 27.7 x 27.7 x 10.1 21.97 x 15.57 20.14 x 13.42 OLED Display 0.95 inch 65,536 Colors

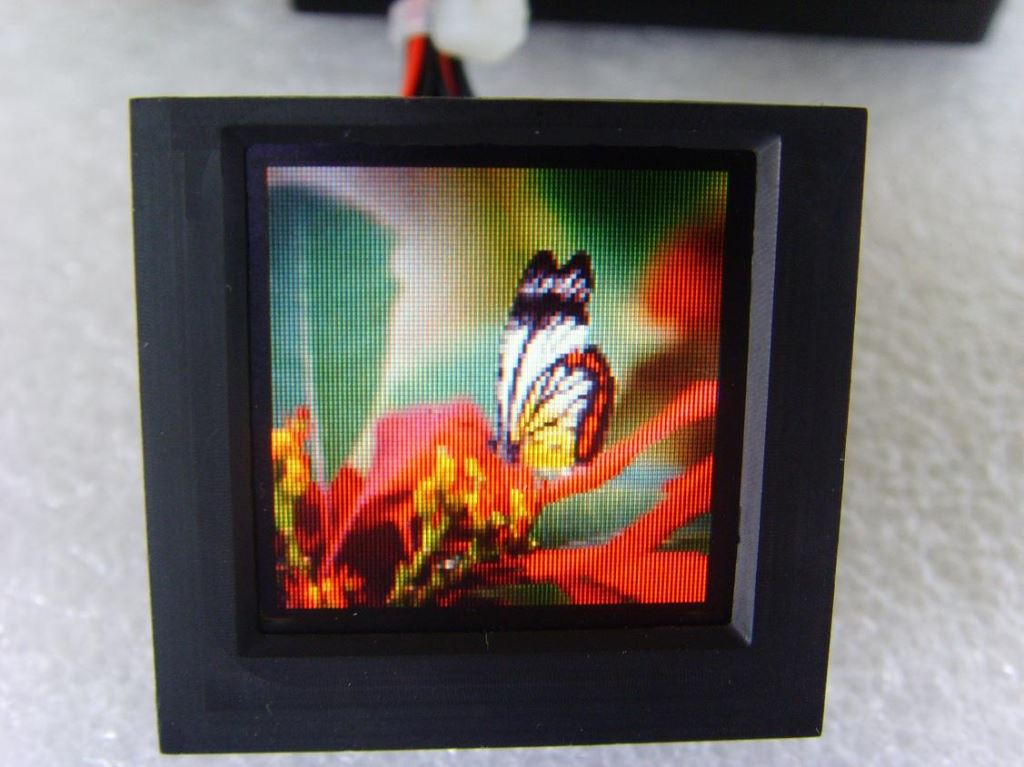

SCY-3031 1.1 inch Display module+ plastic window 96 x 96 29.5 x 29.5 x 10.3 21.65 x 21.65 19.852 x 19.856 OLED Display 1.1 inch 65,536 Colors

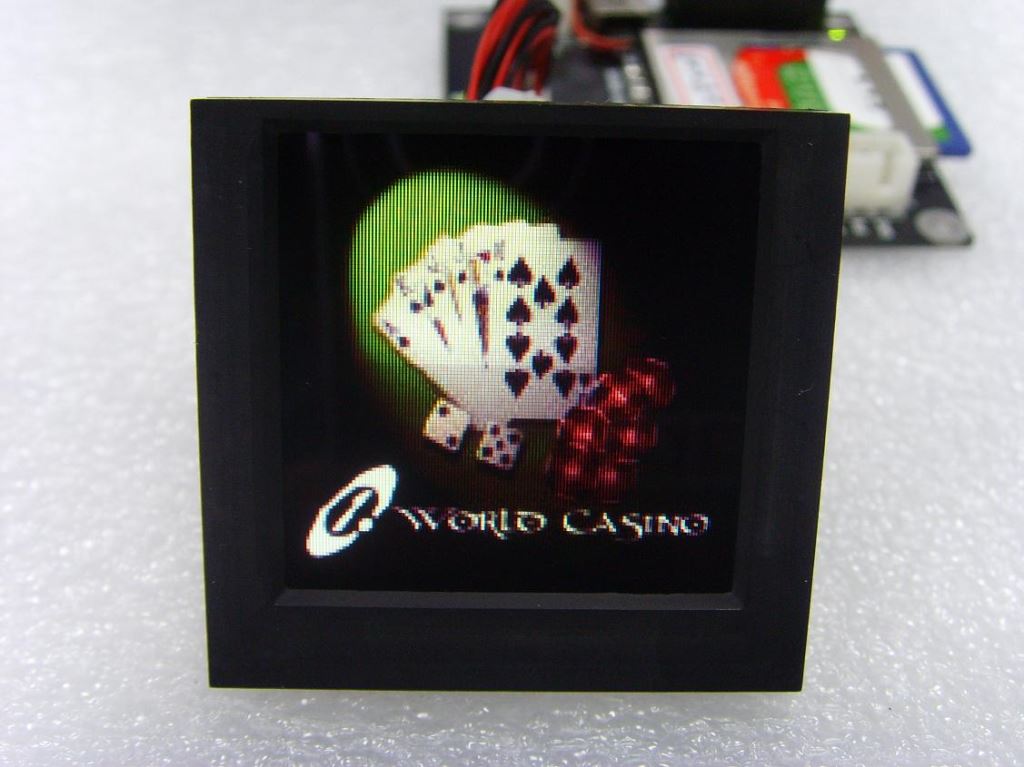

SCY-3051 1.5 inch Display module+ plastic window 128 x 128 37.5 x 37.5 x 10.3 28.660 x 28.664 26.855 x 26.864 OLED Display 1.5 inch 262,144 Colors

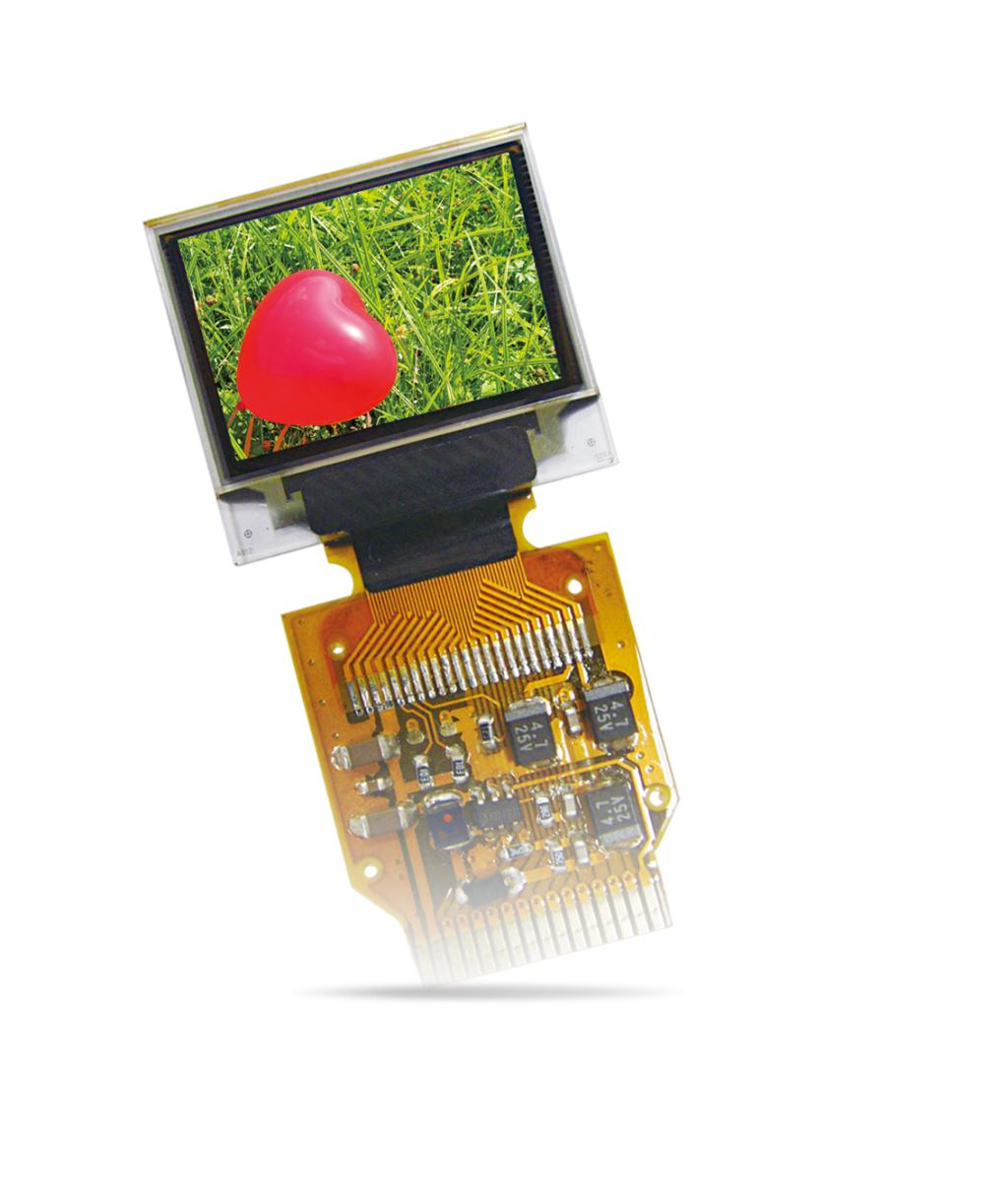

SCY-3121 0.95 inch Display module+ FPC 96 x 64 25.76 x 52.18 21.97 x 15.57 20.14 x 13.42 OLED Display 0.95 inch 65,536 Colors

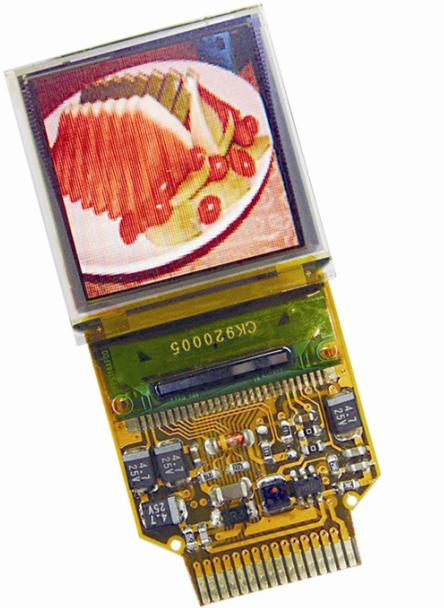

SCY-3131 1.1 inch Display module+ FPC 96 x 96 25.77 x 56.15 21.85 x 21.86 19.85 x 19.86 OLED Display 1.1 inch 65,536 Colors

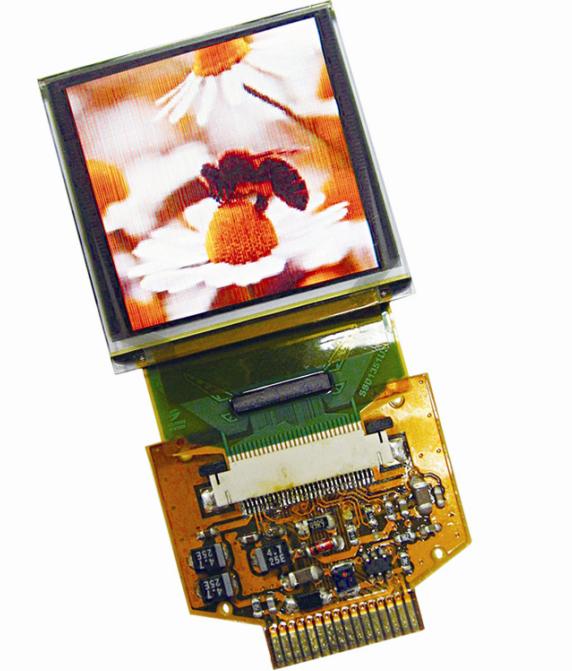

SCY-3151 1.5 inch Display module+ FPC 128 x 128 33.8 x 68.14 28.82 x 28.86 26.79 x 26.86 OLED Display 1.5 inch 262,144 Colors


⇒QUOTE DISPLAY NOW
