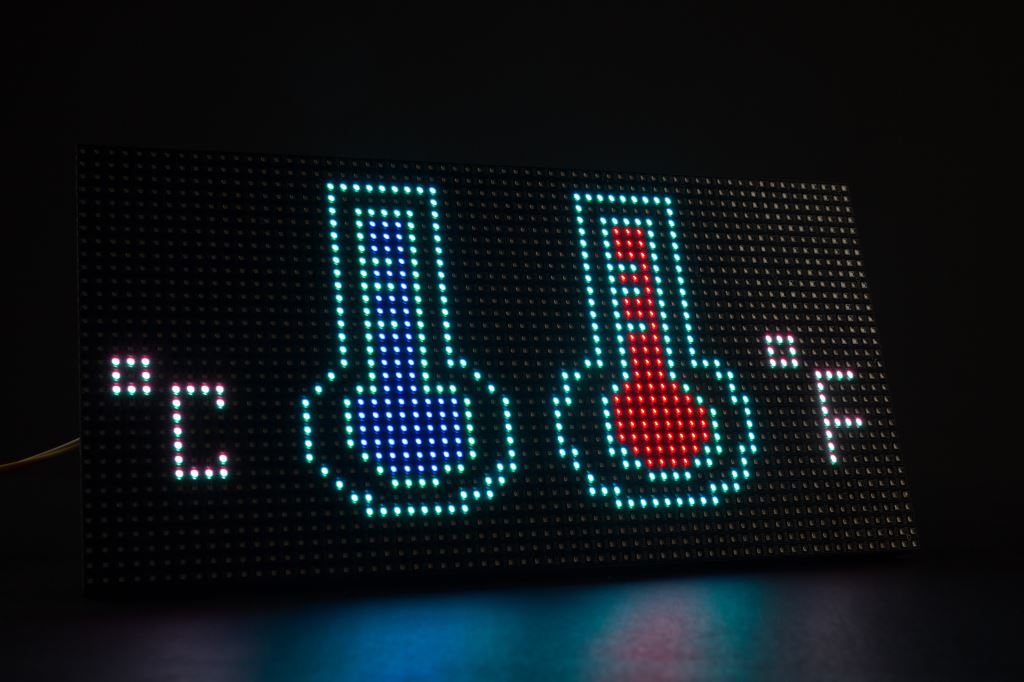

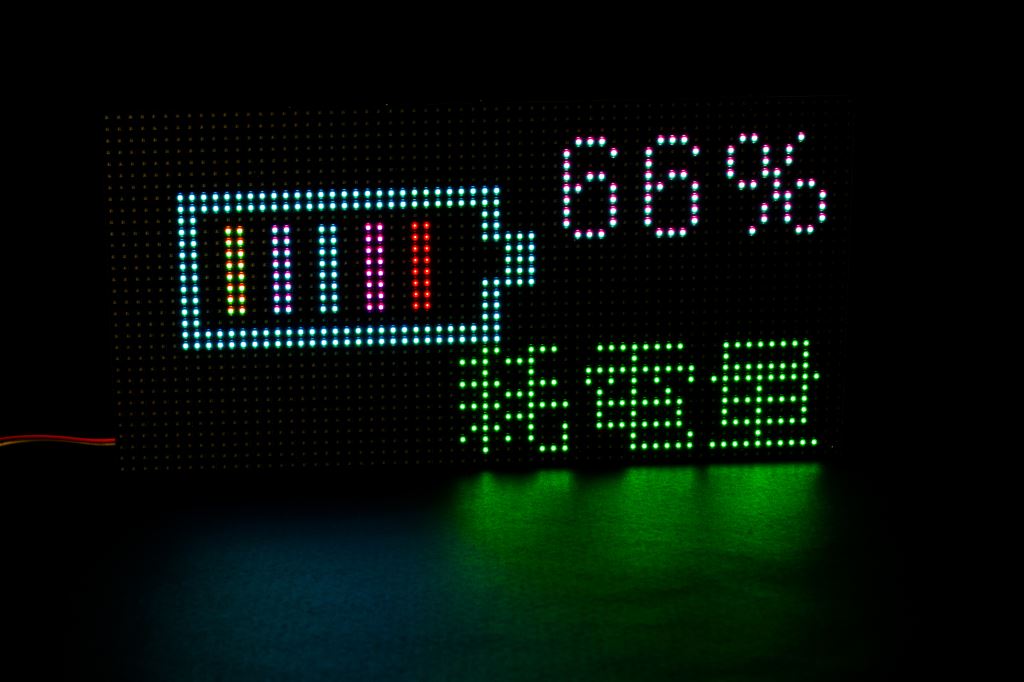

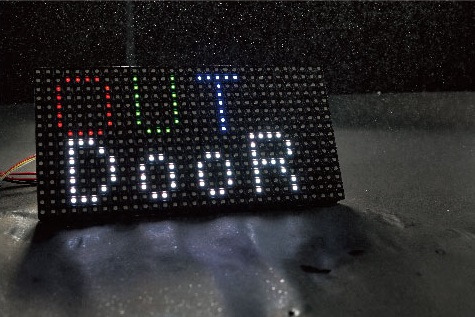

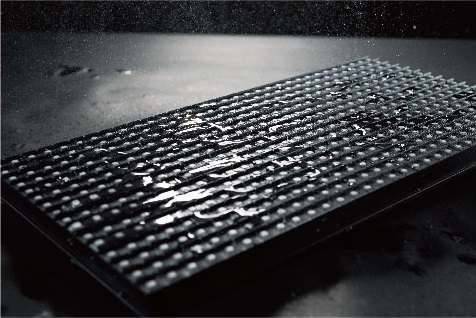

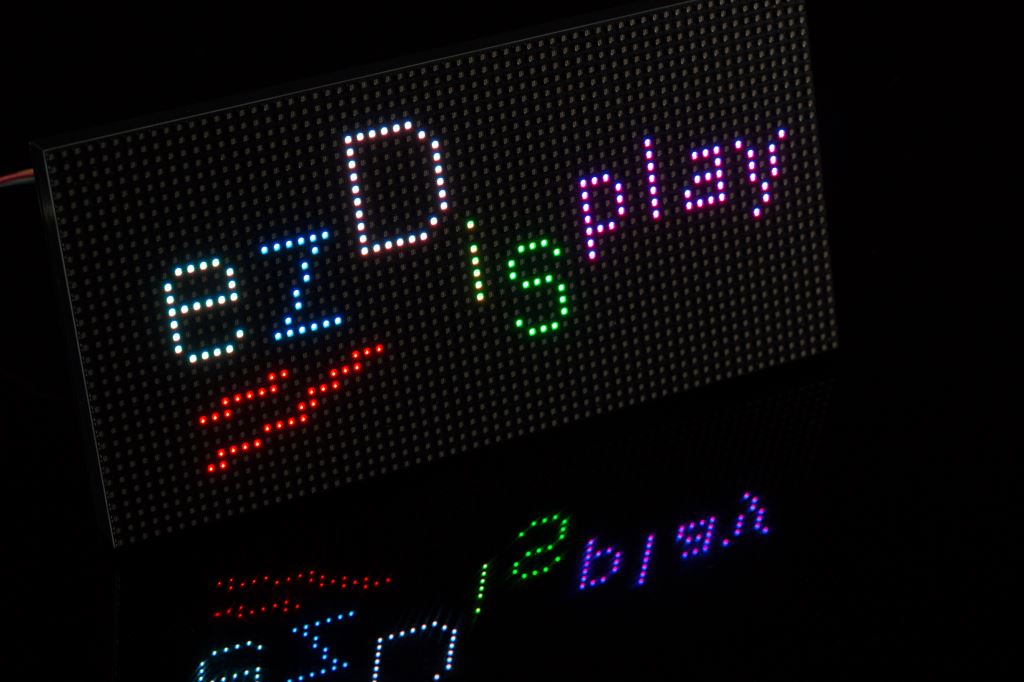

LED Display

SUNLIKE manufactures RGB LED dot matrix display modules, and is capable of custom projects.
   Features:
    UART interface   Mixed Character and Graphic modes
    No driver or library needed   Multi-screen display capability
    Runs HEX or AT command modes   Easy-to-use Windows ezDisplay Console app
    Built-in fonts and patterns   Able to show animation, various languages
    Fits any MCUs and Embedded systems
    Optional add-ons: USB 2.0, BLE 4.0, 2.4GHz RF
* Click the Model No. for datasheet.​

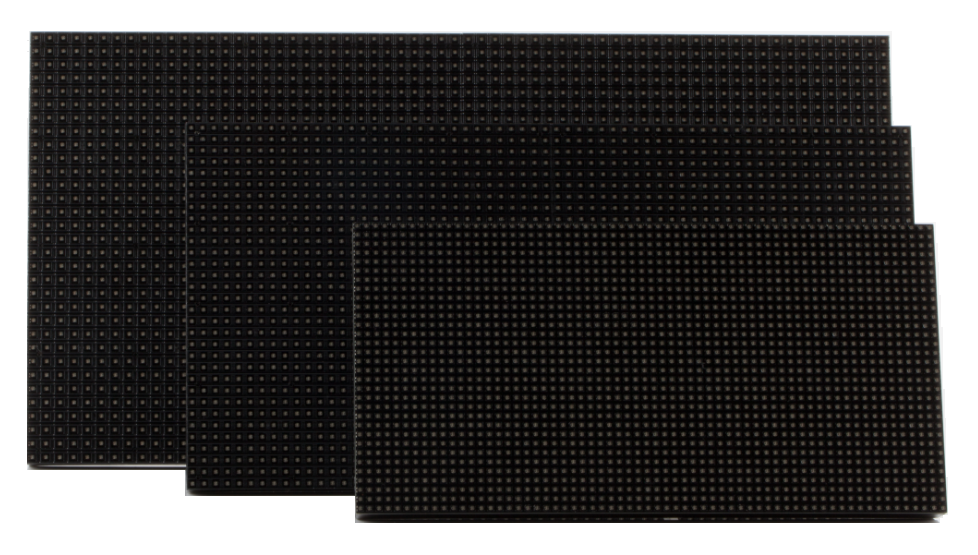

MODEL NO.  BRIGHTNESS PIXEL PITCH POWER MODEL SIZE  PHOTO
(cd/m²) (mm) CONSUMPTION WxHxT (mm)
AD-6432-3BLE4-1 450 min 3 7.5W MAX 192.0 x 96.0 x 33.55
AD-6432-4BLE4-1 375 min 4 7.5W MAX 256.0 x 128.0 x 33.40
AD-6432-5BLE4-1 300 min 5 7.5W MAX 320.0 x 160.0 x 33.41

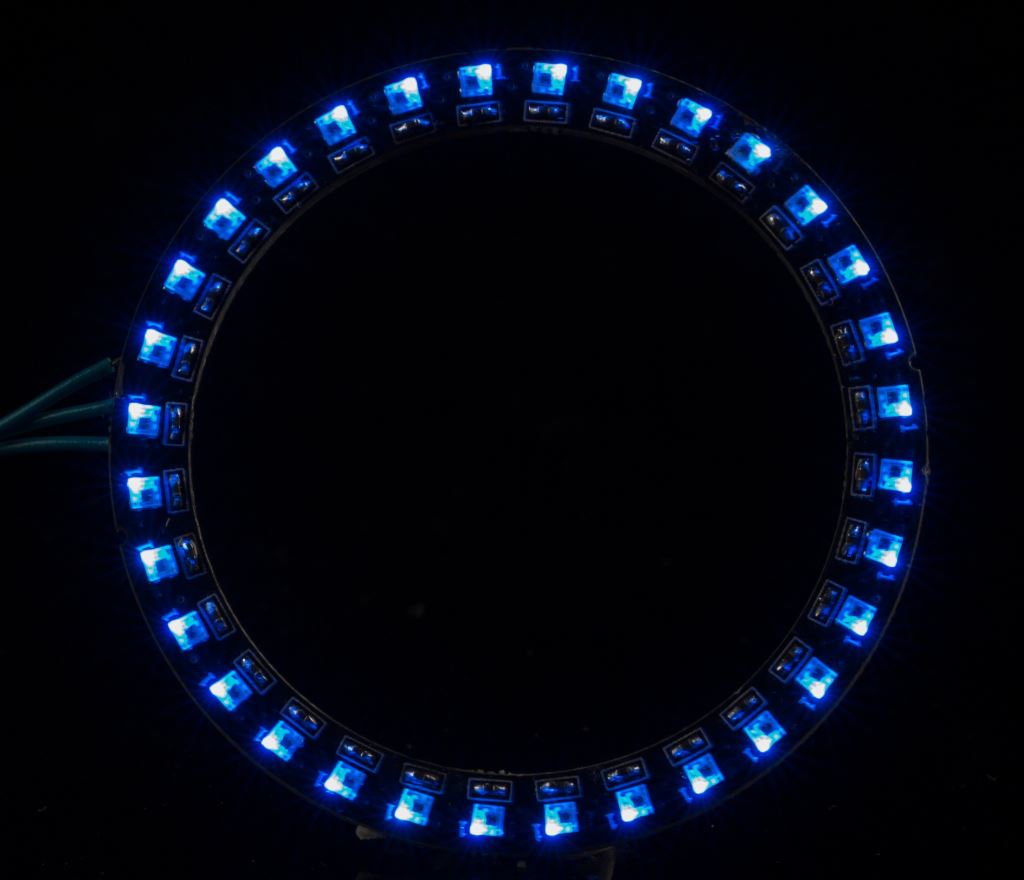

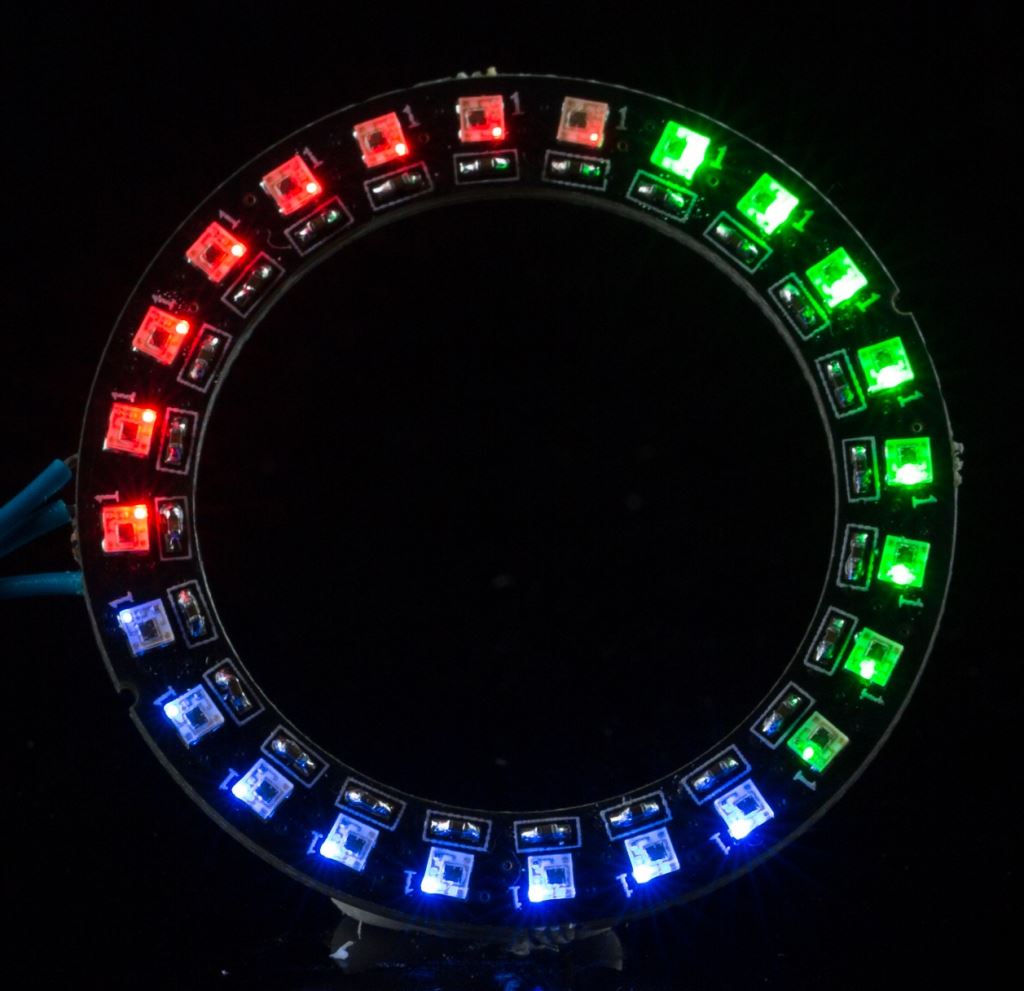

Ring Shape​
MODEL NO.  OUTER DIA. LUMINOUS INTENSITY MAX (mcd per dot) RGB  PHOTO
INNER DIA. (mm) R G B LEDs
ADR-3727-12-UR 37 / 27 180 360 72 12 / 24
ADR-5141-16-UR 51 / 41 180 360 72 16 / 32
ADR-6656-24-UR 66 / 56 180 360 72 24 / 48

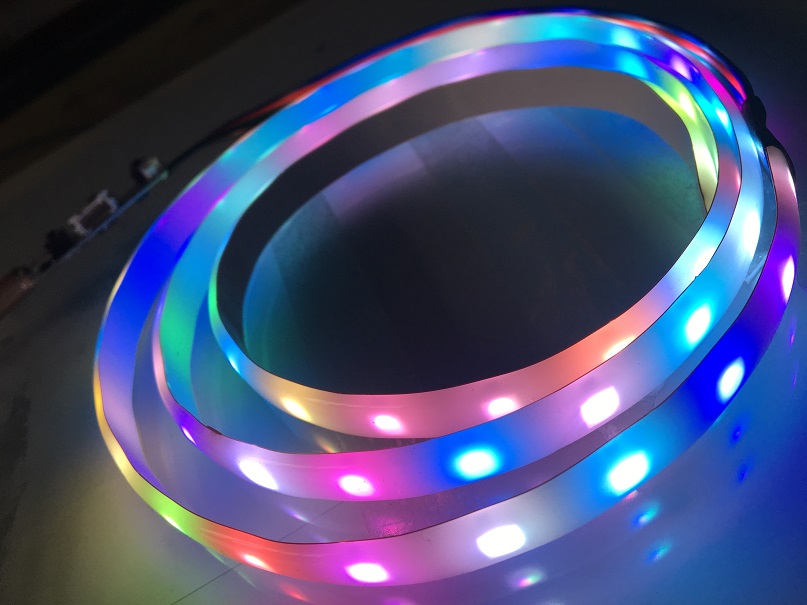

Strip​
MODEL NO.  LIGHT BAR SIZE LEDs Note
WxHxD (mm) (piece)
ALP100010-60RGB-UR 1004.0 x 10.0 x 3.0 60
ALP100010-60RGB01-UR 1010.3 x 14.8 x 6.0 60 With casing.
ALP100010-60RGBD-UR 1004.0 x 10.0 x 3.0 60 With clock function, user can adjust the LED brightness through the software.
ALP100010-60RGBD01-UR 1010.3 x 14.8 x 6.0 60 With casing & clock function. User can adjust the LED brightness through the software.
