Product Details

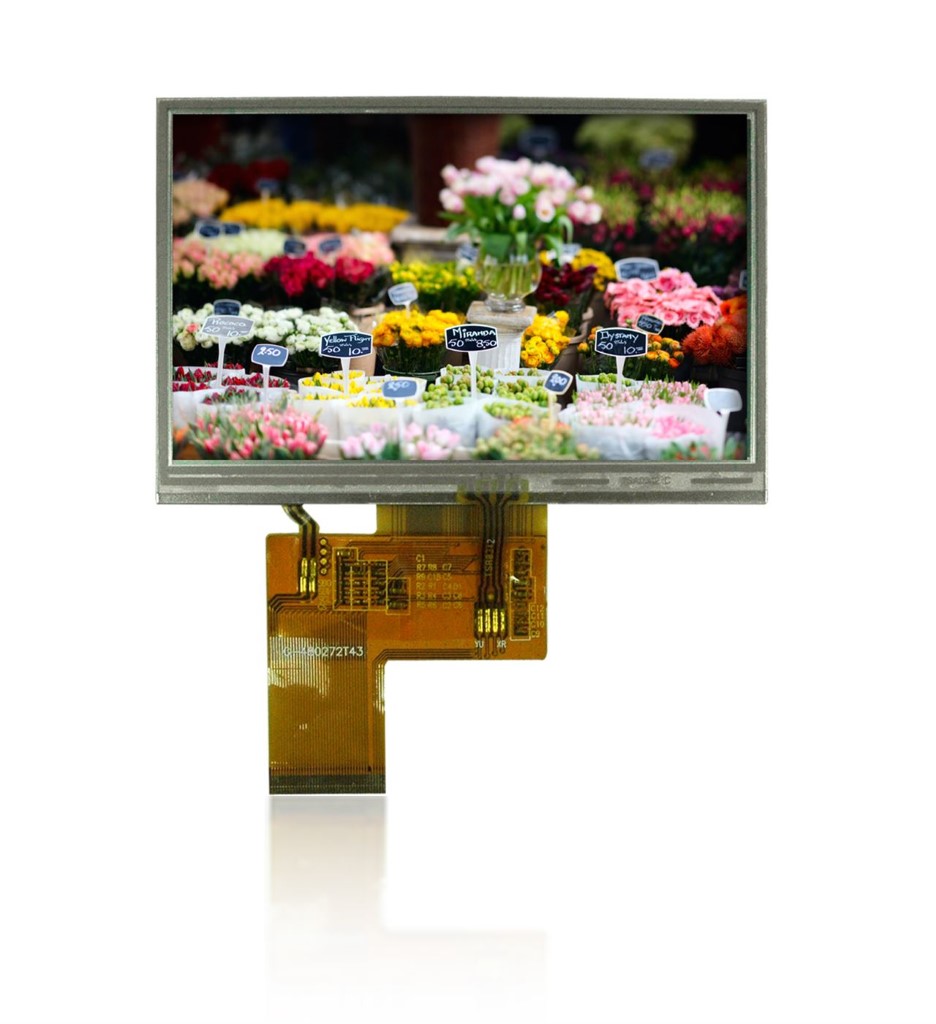

TFT- LCD

Model：AM Series
Specification：0.96 - 15 inch TFT with or w/o touch panel, controller board, high brightness, wide view angle, etc.

Product Introduction

◆ The technology we apply is a-Si TFT.
◇ Operating Temp.: -20 ~ +70 ℃
◆ Storage Temp.: -30 ~ +80 ℃
◇ Viewing angle may be broadened as 80/80/80/80 with
IPS (In-Plane Switching) LCD.
◆ The brightness could be up to 1500 cd/㎡, depending on
customer’s requests.
◇ To make it readable under sunlight, we do OCA/ OCR
optical bonding plus lens and AR coating.
◆ Our modules comply with RoHS.

Size:
From 0.96 to 15.0 inch.

Resolution:
QVGA/ VGA/ WVGA/ SVGA/ WSVGA/ XGA/ WXGA/ HD 1080

Interface:
SPI/ MCU/ RGB/ MIPI/ LVDS/ eDP/ UART/ GPIO for Raspberry Pi

Optional:
Resistive/ Capacitive/ None Touch Panel
Driver/ Control Board for HDMI, VGA is available in some cases.

Applications:
Industrial- Parking kiosk, vending machine, portable measurement unit, etc.

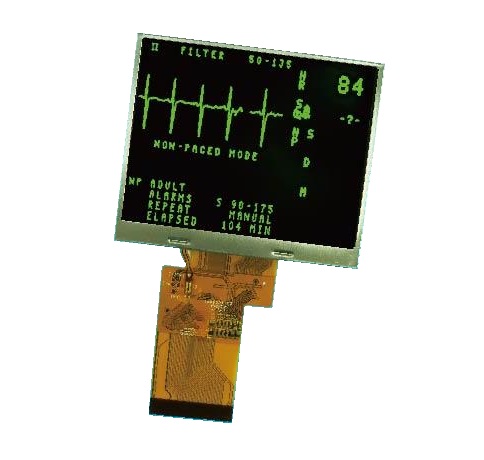

Medical- Thermalmeter, ventilator, compressor, etc.

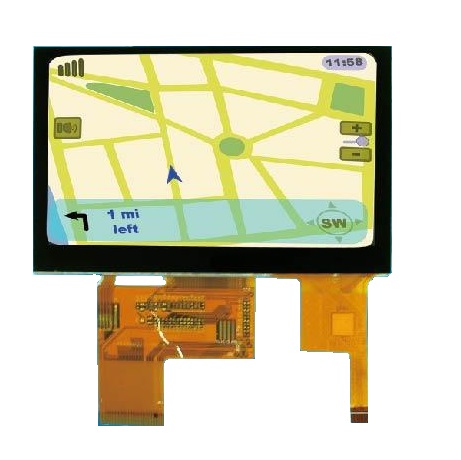

Consumer- Watch, digital clock, handheld gaming, camera, golf GPS, etc.
Others- Agricultural machinery, analysis equipment, etc.

【Link to the datasheets】

Product Notes

For detailed specification of LCD Module, TFT- LCD, Touch Panel, OLED Display, LED Module, feel free to contact us.
⇒ QUOTE DISPLAY NOW
