UART TFT

SUNLIKE DISPLAY has created the UI Editing Tool for Programming, Control Configuration and User Interface Design. With this GUI designing tool, user saves much development time. Simply connect SUNLIKE UART TFT LCD display to the PC, and design your own GUI easily.

*Download the software & documents for reference-
UI Editing Tool

Manual for the software
Q&A List (incl. project example)

UI 編集ツールマニュアル
よくある質問と答え(プロジェクトの例を含む)

中文版問答集(含專案範例)

** Click the Model No. for datasheet.

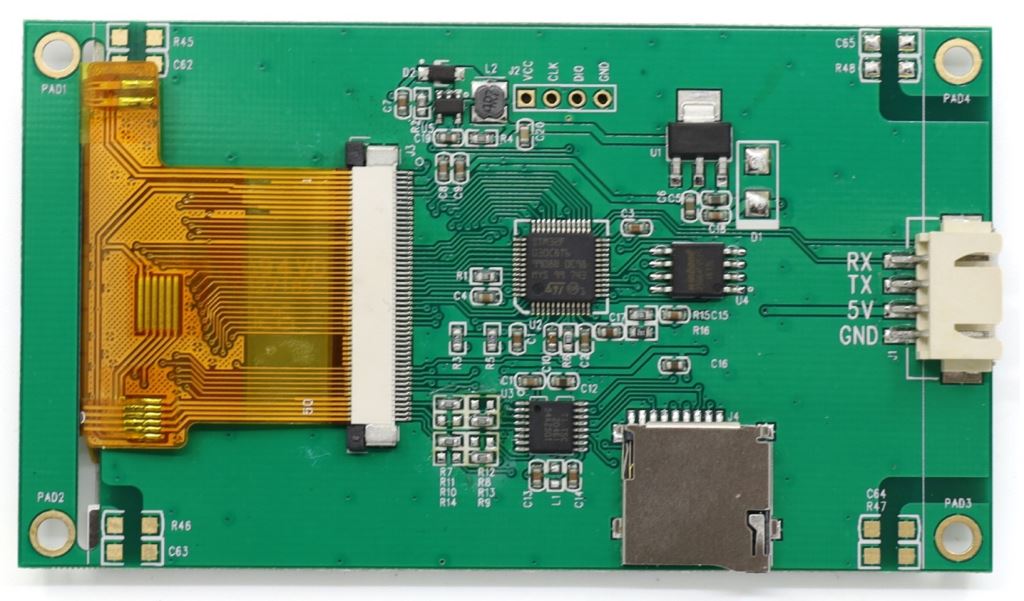

UART interface TFT-LCD Module

MODEL NO.	SIZE	DISPLAY	MODEL SIZE	ACTIVE	TOUCH PANEL
MODEL NO.	(inch)	FORMAT	WxH (mm)	AREA	TOUCH PANEL
AMU-240320-024L-F	2.4	240 x 320	42.72 x 74.26 x 9.40	36.72 x 48.96	None
AMU-240320-024LT-F	2.4	240 x 320	42.72 x 74.26 x 10.60	36.72 x 48.96	Resistive
AMU-240320-024LP-F	2.4	240 x 320	42.72 x 74.26 x 10.85	36.72 x 48.96	Capacitve
AMU-240320-028R-F	2.8	240 x 320	50.00 x 83.20 x 9.65	43.20 x 57.60	None
AMU-240320-028RT-F	2.8	240 x 320	50.00 x 83.20 x 10.70	43.20 x 57.60	Resistive
AMU-240320-028RP-F	2.8	240 x 320	50.00 x 83.20 x 11.20	43.20 x 57.60	Capacitve
AMU-320240-035H-F	3.5	320 x 240	91.00 x 64.00 x 10.40	70.08 x 52.56	None
AMU-320240-035HT-F	3.5	320 x 240	91.00 x 64.00 x 11.55	70.08 x 52.56	Resistive
AMU-320480-035N-F	3.5	320 x 480	54.66 x 96.94 x 9.45	48.96 x 73.44	None
AMU-320480-035NT-F	3.5	320 x 480	54.66 x 96.94 x 10.65	48.96 x 73.44	Resistive
AMU-320480-035NP-F	3.5	320 x 480	54.66 x 96.94 x 10.90	48.96 x 73.44	Capacitve
AMU-800480-043D-B	4.3	800 x 480	125.40 x 77.10 x 15.80	95.04 x 53.86	None
AMU-800480-043DT-B	4.3	800 x 480	125.40 x 77.10 x 17.00	95.04 x 53.86	Resistive
AMU-800480-043DP-B	4.3	800 x 480	125.40 x 77.10 x 17.30	95.04 x 53.86	Capacitve
AMU-800480-050R-B	5.0	800 x 480	140.70 x 85.80 x 15.70	108.00 x 64.80	None
AMU-800480-050RT-B	5.0	800 x 480	140.70 x 85.80 x 17.30	108.00 x 64.80	Resistive
AMU-800480-050RP-B	5.0	800 x 480	140.70 x 85.80 x 17.90	108.00 x 64.80	Capacitve
AMU-800480-070T-B	7.0	800 x 480	185.0 x 110.0 x 18.55	154.08 x 85.92	None
AMU-800480-070TT-B	7.0	800 x 480	185.0 x 110.0 x 19.70	154.08 x 85.92	Resistive
AMU-800480-070TP-B	7.0	800 x 480	185.0 x 110.0 x 20.60	154.08 x 85.92	Capacitve

SD Card (optional) for uploading the project file.

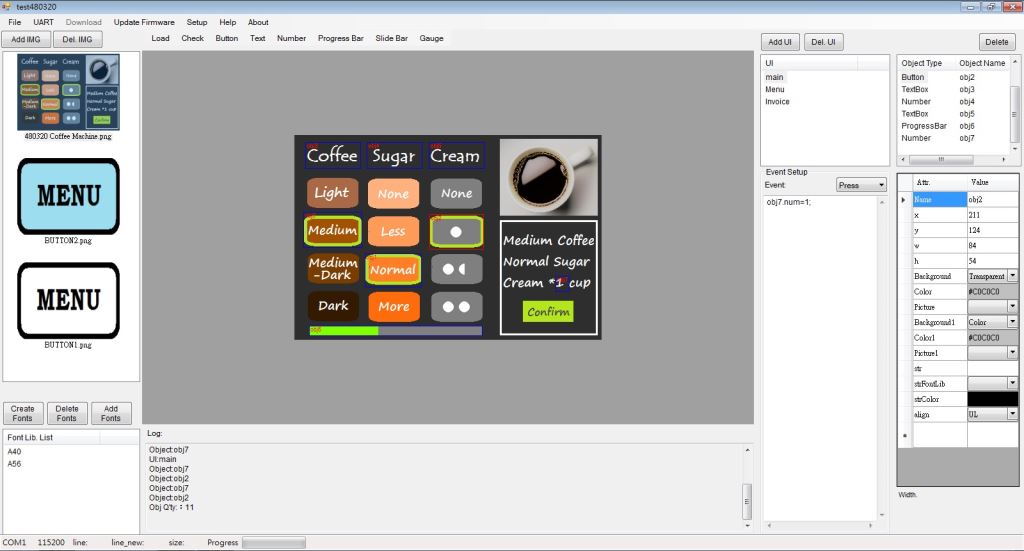

UI Editing Tool Introduction-

There are various widgets for designing the display contents-

If you have any questions about UART TFT LCD, please contact us for support anytime.
